The new Optica Magnus Full Frame Finder is now available to order

par P+S Technik - 8 octobre 2020 - Modifié le 29/04 Contre-Champ AFC n°313

[ English ] [ français ]

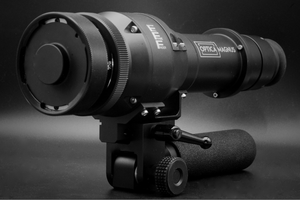

The new Optica Magnus full format viewfinder is an ergonomically designed optical viewfinder system that offers Spherical and Anamorphic capabilities. Currently squeeze factors are 1.5X and 1.9X (1.9X covers 1.8X and 2.0X squeeze factors). The viewfinder is compatible for all sensor formats up to RED Monstro 8K (image diameter 46,31mm), offers interchangeable lens mounts and more.

Attach any cinema lens to the viewfinder and get a true rendering of the image
Money savings as only one Ground Glass is needed :
The viewfinder has the unique capability to display any frame-line arrangement the user desires, to suit the camera sensor size and post-production image extraction requirements.
The frame-lines are printed using a Laser Printer, onto clear high temperature resistant polyester film, which is then cut out and inserted in a slot in the side of the viewfinder in front of the ground glass.

Features
- Interchangeable lens mounts with IMS (PL, LPL and more)
- Easy exchange system between spherical and anamorphic module
- Lightweight and extrem bright (minimum light loss)
- Ergonomically designed Pivoting Handle Grip aiding Counterbalance
- Adjustable eyepiece diopter
- Customized anamorphic modules, available from a quantity of 20 units on
- FrameFinder App is available in either Windows or Mac on their respective app stores
- Optional : Changeable eyepiece for Super35 and Full Format view
- Optional : Video assist system (tba)
